5 Effective Ways to Declutter Your Charts

Creating clear and effective charts isn't just about putting data on display—it's about making that data instantly understandable. One of the most powerful ways to achieve this is by removing unnecessary elements that don't contribute to the message. Here are six proven methods to declutter your charts and make them more impactful.

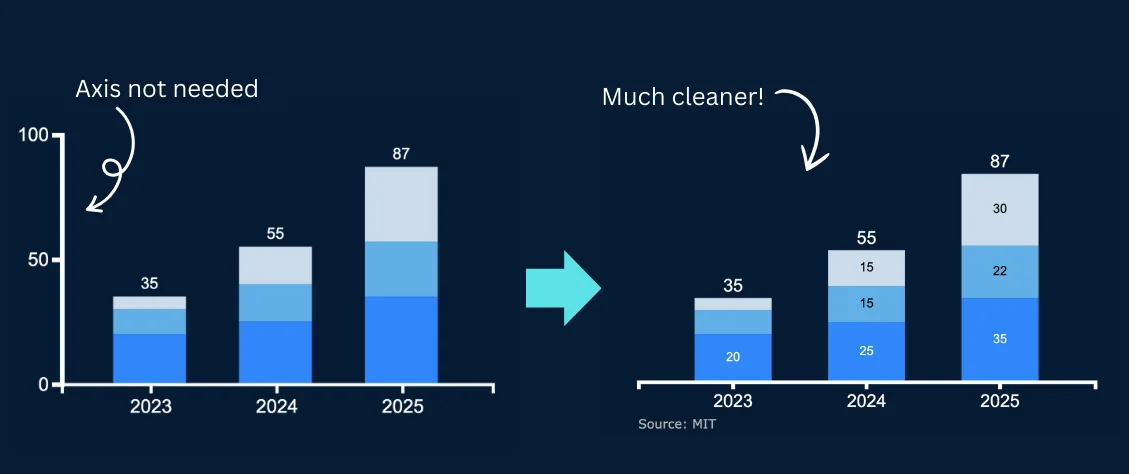

1. Remove the Y-Axis

The y-axis line is often unnecessary and can create visual noise. By removing it, you allow your data to speak for itself while maintaining all the necessary information through gridlines or data labels. When working with stacked bar charts, removing the y-axis requires careful consideration - you should add labels to each component of the stack to maintain clarity. If space is limited, you might omit labels for smaller segments, but ensure the total value is always visible.

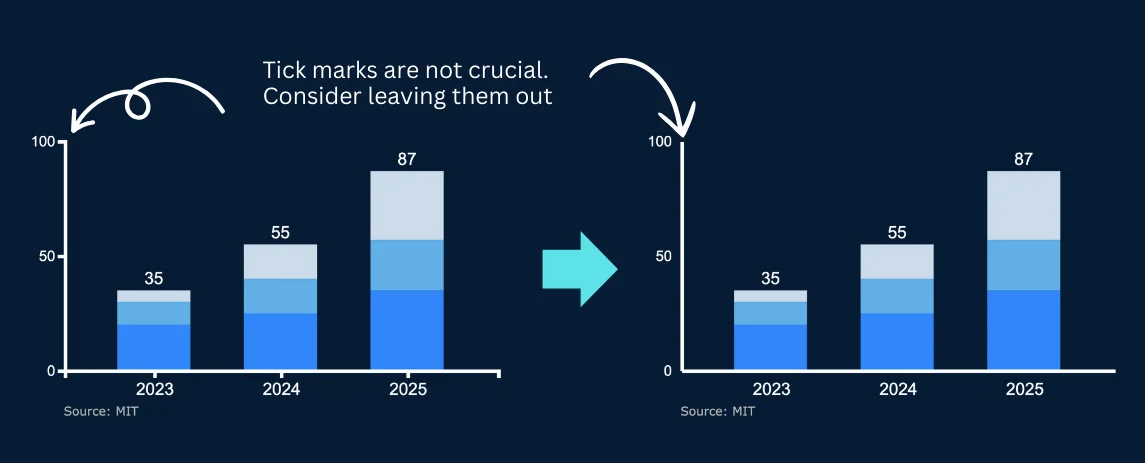

2. Eliminate Tick Marks

Tick marks can make your chart look busy. Remove them to create a cleaner look while maintaining readability. This is particularly effective when you want to keep the y-axis but still want to reduce visual noise.

[Image should show: Same bar chart in three versions - with both axis and ticks, with axis but no ticks, completely stripped. Highlight how the middle option provides a good balance]

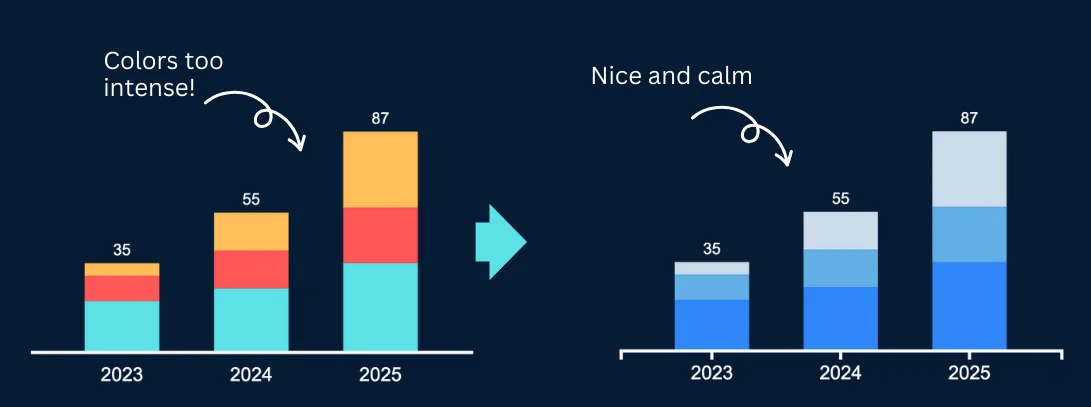

3. Use a Non-Contrasting Color Scheme

High contrast isn't always better. Using subtle, harmonious colors can make your chart easier to look at while still effectively communicating data differences. Choose colors that work together rather than compete for attention.

4. Remove Unnecessary Text

Every word in your chart should serve a purpose. Remove redundant labels, reduce legend text, and consider whether each text element truly adds value to understanding the data.

5. Integrate Labels Directly

Instead of using a separate legend, consider placing labels directly next to your data points or bars. This reduces eye movement and makes your chart more immediately understandable. It's particularly effective for line charts and bar charts where you have enough space near the data elements.

Direct labeling eliminates the need for viewers to constantly look back and forth between the data and the legend, making the chart more efficient to read and understand.

Finding the Right Balance

The art of chart design lies in finding the sweet spot between clarity and simplicity. Think of it like a well-organized room: remove the clutter, but keep the essential furniture. Your goal is to make data more accessible, not to win a minimalist design award.

Remember these key principles:

• If removing an element makes the data harder to understand, keep it. If you're not sure, measure how long it takes for users to understand the chart.
• Test your charts with actual users - what seems clear to you might not be clear to others
• Different types of data require different levels of detail
• When in doubt, err on the side of clarity over aesthetics

The most effective charts aren't necessarily the most stripped-down ones - they're the ones that communicate their message most clearly to their intended audience. Master the art of selective simplification, and your charts will not just look better - they'll work better.
