How to Create a Line Graph in Google Sheets (Step-by-Step Guide with Images)

What is a Line Graph?

Line graphs are essential tools for visualizing trends and changes over time. Whether you're tracking sales growth, analyzing temperature fluctuations, or presenting survey data, Google Sheets makes it easy to create professional line graphs. This guide will walk you through the process step-by-step, from basic creation to advanced customization.

Line graphs plot points connected by lines to show data changes over time or across categories.

Example:

• A line graph is ideal for showing stock price movements over several months.

• It can also compare trends in different datasets.

Step-by-Step Guide to Creating a Line Graph in Google Sheets

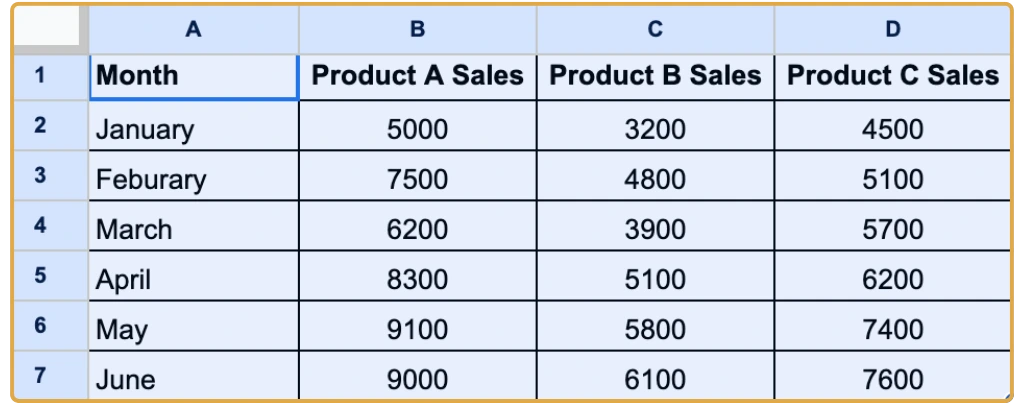

Step 1: Prepare Your Data

Before you create a line graph, organize your data clearly. Typically, you'll have one column for the X-axis (e.g., dates, time periods) and another column for corresponding values (e.g., sales, temperature).

Tips:

• Ensure no blank rows or columns exist within your data range.
• Use precise labels to make the graph more informative.
• If your data includes dates, format them correctly for seamless chart generation.

Step 2: Select Your Data

1. Highlight the cells containing the data you want to graph, including headers.
2. Ensure both X-axis and Y-axis data is selected.

Tips:

• Drag to select the range or use keyboard shortcuts (Shift + Arrow keys) for faster selection.
• Double-check that all relevant data is included.

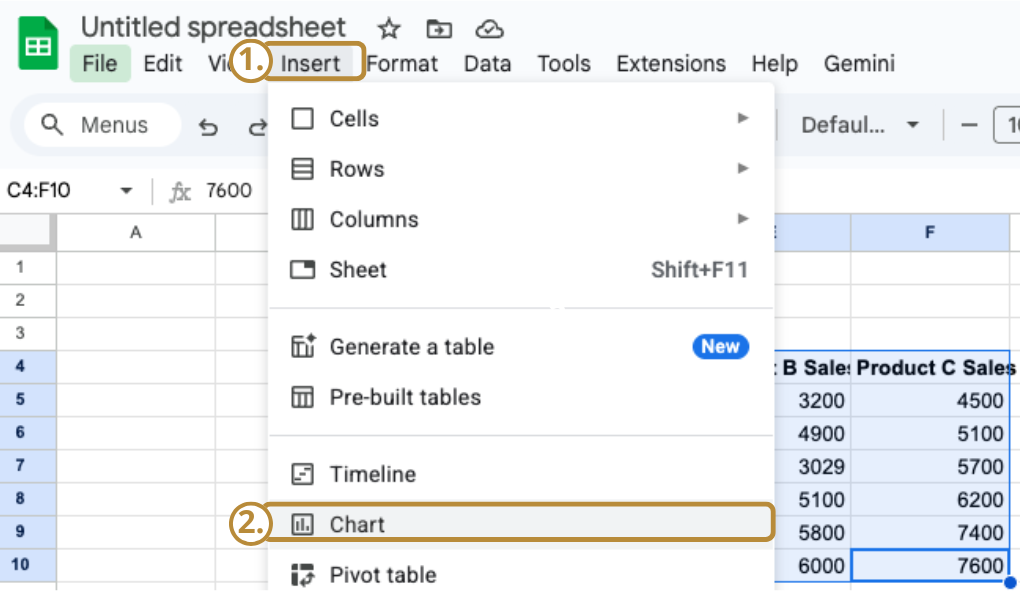

Step 3: Insert the Chart

1. Click the Insert menu at the top of the screen.
2. Choose Chart from the dropdown.
3. Google Sheets will create a default chart based on your selected data.

Tips:

• If the default chart type isn't a line graph, no worries—just change it in the next step.
• The Chart Editor will appear on the right-hand side for customization.

Step 4: Choose the Line Chart Type

In the Chart Editor:

1. Click the Setup tab.
2. Select Line Chart from the Chart Type dropdown.

Google Sheets offers three main types of line graphs to suit different data visualization needs:

• Line Chart: This is the standard line graph where points are connected by straight lines. It works best for showing trends over time or across categories. Each line clearly represents a dataset, making it ideal for analyzing changes or patterns.

• Smooth Line Chart: Unlike the standard line chart, this option creates smooth, curved lines between points for a polished and visually appealing appearance. It's particularly useful for datasets with gradual transitions or naturally flowing trends.

• Combo Chart: The combo chart combines different graph styles (like lines, bars, or points) into one chart, enabling comparisons between datasets that require varying visual formats. This type is perfect for showcasing multiple types of data on the same graph.

Tips:

• Use the Line Chart for straightforward trend analysis.
• Choose the Smooth Line Chart for elegant visual presentations.
• Opt for the Combo Chart when you need to compare datasets with different scales or visual needs.

Step 5: Customize Your Line Graph

Once you've created your line graph, you can enhance its readability and appearance with the following customization options:

Customize Titles and Colors

1. Open the Chart Editor by clicking on your chart.
2. Navigate to Customize → Chart & Axis Titles:

• To edit the Chart Title, click the dropdown menu labeled Title Type, select Chart Title, and type in a descriptive title (e.g., "Monthly Sales").
• Repeat the process for Axis Titles (X-axis and Y-axis) to provide additional context. For example:
• X-axis: "Month"
• Y-axis: "Sales ($)"
• Customize the titles using the formatting options:
• Adjust the font style, size, and color to align with your presentation theme.

4. To adjust the graph's colors: Navigate to Customize → Series. Select distinct colors for each dataset line. This is especially useful for differentiating multiple trends. Experiment with complementary or contrasting colors to make the graph visually appealing.

Tips:

• Keep your titles concise and descriptive to make your chart easier to understand.
• When choosing colors, ensure they are distinguishable, especially for viewers with color vision deficiencies.

Customize Line Styles

Line graphs allow unique style customizations, including: Changing the line thickness to make lines more prominent or subtle. Adding dashed or dotted styles to distinguish between multiple lines on the same graph.

1. Open the Chart Editor and navigate to Customize → Series.
2. Adjust the line thickness: Use the Line Width dropdown to make lines bold (for emphasis) or subtle (for clarity in busy graphs).
3. Change the line dash style: Select from solid, dashed, or dotted styles to distinguish between datasets effectively.
4. Play with the overall visual presentation by varying these styles for multiple data lines.

Tips:

• Use a thicker line for your primary dataset to draw more attention to it.
• Experiment with dashed or dotted styles for secondary datasets to differentiate them without overwhelming the graph.

Markers for Data Points

Line graphs can display precise values for each individual data point, making it easier to interpret specific trends along the timeline or X-axis.

1. In the Chart Editor, go to Customize → Series.
2. Enable data point markers: Under Point Style, activate markers for your dataset to highlight each data point along the line. Choose from a variety of marker shapes (e.g., circles, squares) depending on your preferred style.
3. Customize the size of the markers to make data points clearer and stand out visually.

Tips:

• Use markers for data points when you want to highlight exact values or significant points.
• Avoid overly large markers that could make the graph look cluttered.

Add Trendlines

Trendlines are especially useful in line graphs to visualize the overall direction or pattern of the data. You can add different types of trendlines, such as: Linear: For a straight-line trend. Exponential, Polynomial, or Moving Average: For more complex patterns in your data.

These are not typically applied to other chart types, like bar or pie charts.

1. Navigate to Customize → Series in the Chart Editor.
2. Enable trendlines: Check the box for Trendline to add a visual representation of the overall trend in your data.
3. Select a trendline type based on your data
4. Fine-tune the trendline: Change the color to make it distinct from the original line graph. Adjust the thickness for emphasis.

Tips:

• Use trendlines to help viewers quickly identify the direction or pattern in your data.
• Adjust the trendline color to contrast with the primary lines, making it clear and noticeable.

Gridline Customization

1. Open the Chart Editor and navigate to Customize → Gridlines and Ticks.
2. Adjust the Major Gridlines: Add or remove them to focus on key intervals.
3. Enable or disable Minor Gridlines: Use these for finer details without overcrowding the graph.
4. Customize the gridline appearance: Change their color, style, and opacity to fit the overall design of your graph.

Tips:

• Keep gridlines light and subtle to avoid diverting attention from the main graph elements.
• Use minor gridlines sparingly to prevent the graph from looking too busy.

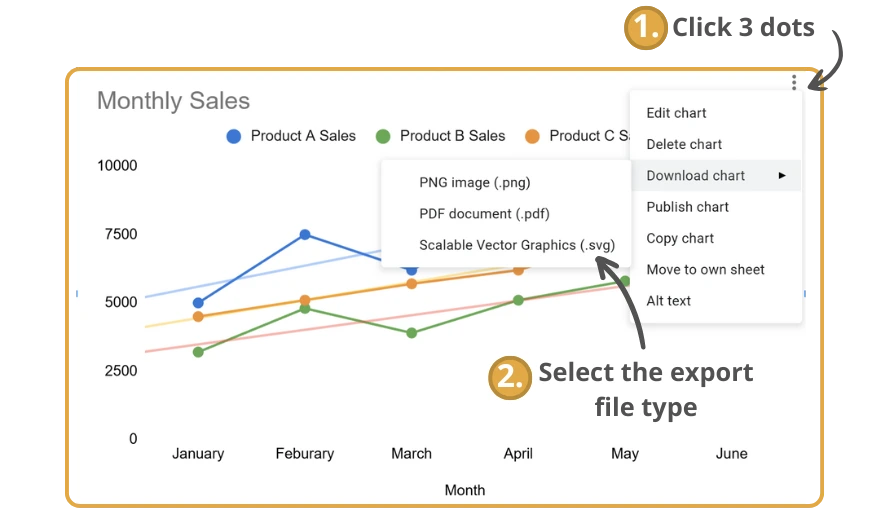

Step 6: Exporting & Sharing Your Graph

Once you're satisfied with your graph:

• Download it as a PNG, PDF, or SVG (Click the three dots → Download).
• Copy & paste it into Google Docs or Slides.
• Publish it online via File → Publish to the web.

Conclusion

Creating line graphs in Google Sheets is an invaluable skill for showcasing trends and comparisons. With this guide, you're equipped to craft professional, visually appealing line graphs for any purpose. Experiment with styles and customizations to make your data shine!
